Understanding the UCP205 Pillow Block Bearing

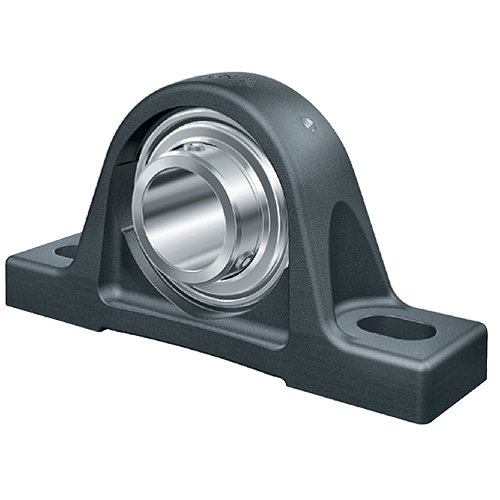

UCP205 Pillow Block Bearing: The Workhorse of Industrial Motion
In the intricate machinery that powers our modern world, countless components work in unison to ensure smooth operation. Among these essential elements, bearings play a silent yet critical role, reducing friction and enabling precise movement.
The global bearing market highlights their importance. It was valued at approximately £39.63 billion in 2025 and is projected to reach around £98.02 billion by 2034, exhibiting a strong compound annual growth rate (CAGR) of 10.90% (Fortune Business Insights, 2026).
Within this vast market, pillow block bearings stand out as versatile and robust solutions, particularly for applications requiring reliable shaft support. These bearing units are fundamental to a wide range of industrial processes, from conveyor systems to agricultural machinery.
This article explores the specifics of the UCP205, a widely used and dependable pillow block unit, examining its design, key features, applications, and the practical benefits it brings to industrial operations. Understanding the UCP205 means recognising a crucial component that underpins efficiency and longevity in machinery worldwide.
If you are looking to purchase this bearing, you can buy it here:
https://bearingsuperstore.co.uk/product/ucp205-bearing-unit-np25/
What Is a Pillow Block Bearing?
A pillow block bearing, also known as a plummer block bearing or housed bearing unit, is a type of mounted ball bearing. It consists of a specially designed housing, typically manufactured from cast iron, containing an inner bearing unit.
The assembly is mounted onto a surface, usually a machine frame, using bolts through pre-drilled holes in the housing base. Its primary function is to support a rotating shaft in a fixed position, allowing it to rotate freely whilst maintaining stability and accommodating various loads.
Pillow block bearings are especially useful where a shaft must be supported at its end or at intermediate points along its length. Their design allows for straightforward installation and alignment, making them a popular choice across numerous industries.
Why the UCP205 Stands Out
Among the extensive range of pillow block bearings, the UCP205 has earned a reputation as a dependable standard-duty solution. This means it is well suited to a broad spectrum of industrial applications that do not involve extreme loads or operating conditions.
Its popularity is driven by robust construction, reliable performance, cost-effectiveness, and ease of installation. Frequently specified in original equipment manufacturing (OEM), the UCP205 delivers predictable performance and straightforward integration into machinery.
Deconstructing the UCP205: Anatomy and Core Features
The UCP205 housing is typically made from durable cast iron. This material provides excellent rigidity and strength, effective heat dissipation, good vibration damping, and long service life. Pre-drilled mounting holes allow secure attachment to machine bases, ensuring proper alignment and stability.
UC205 Insert Bearing: The Heart of the Unit
At the centre of the UCP205 is the UC205 insert bearing. This insert is specifically designed for housed applications and features a spherical outer ring for self-alignment, precision-machined raceways, and high-quality rolling elements.
The spherical outer surface allows slight misalignment within the housing, helping to reduce stress and prolong bearing life.
Set Screw Locking Mechanism: Secure Shaft Attachment
The UCP205 commonly uses a set screw locking system. Integrated into the inner ring, the set screw is tightened directly against the shaft to create a secure mechanical lock.
When correctly torqued, this prevents slippage and ensures efficient power transmission. Proper installation is essential; the shaft must be clean and the set screws tightened to the recommended torque settings.
Advanced Sealing System: Protection Against Contaminants
Industrial environments often expose bearings to dust, moisture, and debris. The UCP205 incorporates robust rubber seals to protect internal components.
Many variants also include a flinger, a rotating ring that deflects contaminants away from the seals. This dual protection system prevents ingress of dirt and water, retains lubricant, and extends bearing life.
Grease Nipple and Relubrication
The housing includes a grease nipple for straightforward relubrication. Regular greasing reduces friction, dissipates heat, flushes minor contaminants, and extends service life.
Following a proper lubrication schedule is essential for optimal performance.
Key Specifications and Performance Characteristics
Bore Size and Shaft Compatibility
The standard UCP205 typically features a 25 mm bore.
A common imperial variant, the UCP205-16, has a 1-inch bore.
Correct shaft matching is critical to prevent premature failure.
Load Ratings
The UCP205 is primarily designed to handle radial loads, with limited axial load capacity. Correct load matching significantly improves operational lifespan.
Operating Temperature Range
Standard UCP205 units typically operate effectively between -10°C and +100°C.
Exceeding this range may reduce lubrication performance and accelerate wear.
Industry Standards and Classification
Bearing units such as the UCP205 generally conform to recognised industry dimensions, ensuring interchangeability between manufacturers. They are commonly classified under HS code 8483 20 00 00.
Applications: Where the UCP205 Excels
The UCP205 pillow block bearing is widely used in industrial and manufacturing equipment such as conveyor systems, mixers, crushers, packaging machinery, and textile equipment. Industrial automation trends are expected to increase demand for specialised bearings by approximately 10% by 2025.
In agricultural machinery, including harvesters, planters, feed mills, and irrigation systems, its sealing and robust housing make it ideal for dusty and damp environments.
In construction and heavy industry, including material handling systems, screening equipment, and crushing plants, its secure locking system ensures performance under vibration and shock loads.
Benefits of Using the UCP205
The UCP205 pillow block bearing offers long service life, reduced downtime, improved operational efficiency, self-aligning capability, and cost-effective maintenance.
The global bearings market is projected to reach approximately £98.02 billion by 2032, demonstrating continued growth and demand for reliable solutions.
Installation and Maintenance Best Practice
Installation Tips
Ensure shaft and mounting surfaces are clean.
Align housing correctly before tightening bolts.
Tighten set screws to correct torque.
Apply recommended grease.
Maintenance Checklist
- Carry out regular visual inspections.
- Follow a scheduled relubrication plan.
- Monitor for unusual noise or overheating.
- Check for shaft slippage.
Purchasing the UCP205
When purchasing a UCP205 pillow block bearing, always confirm bore size (25 mm or 1 inch variant), load requirements, operating environment, and mounting dimensions.
You can purchase the UCP205 pillow block bearing here:
https://bearingsuperstore.co.uk/product/ucp205-bearing-unit-np25/
Conclusion
The UCP205 pillow block bearing represents practical, dependable engineering. Its cast iron housing, precision insert bearing, secure locking mechanism, and effective sealing system make it a trusted choice across industries.
By selecting the correct variant, installing it properly, and maintaining it regularly, users can maximise performance, minimise downtime, and extend machinery lifespan.
The UCP205 pillow block bearing is more than a component; it is a cornerstone of industrial reliability and operational continuity.
